Thermowell for Temperature Sensor
Main Materials and Characteristics of Metallic Protection Tubes and Thermowells
|
Material
|
Fabric
|
Max Temp Limit
|
Features
|
|
Pipe
|
Bar Stock
|
Normal
|
Max
|
|
SUS304
|
○
|
○
|
850
|
950
|
Having high heat resistance, acid resistance, and alkali resistance
|
|
SUS316
|
○
|
○
|
850
|
950
|
Almost same as SUS304 in heat resistance, acid resistance and alkali resistance, but corrosion resistance higher than SUS304 at high temperature
|
|
SUS316L
|
○
|
○
|
850
|
950
|
Carbon amount decreased from SUS316,iIntergranular corrosion resistant material
|
|
SUS310S
|
○
|
○
|
1050
|
1100
|
Having high NiCr content. High heat resistant steel which has high oxidation resistance at high temperature
|
|
UMCo50
|
○
|
○
|
1150
|
1200
|
Co base alloy. High heat resistant alloy which has abrasion resistance and sulfuric resistance.
|
|
INCONEL 600
(NCF600)
|
○
|
○
|
1000
|
1250
|
Having good corrosion resistance against oxidizing or reducing atmosphere and extremely low sensibility against cracking by stress and corrosion
|
|
INCOLOY 800H
(NCF800H)
|
-
|
○
|
1100
|
1260
|
Having good resistance against at high temperature, cementation and creep, and also against corrosion at high temperature
|
|
HASTELLOY B
|
-
|
○
|
500
|
800
|
Nickel based alloy, having good resistance against heat and corrosion and, especially, against corrosion by hydrochloric acid
|
|
HASTELLOY
C276
|
-
|
○
|
900
|
1090
|
Having good corrosion resistance against sulfuric compound and chloride and being used for various processes in chemical industries. Also having good corrosion resistance after welding.
|
|
SUC4
|
-
|
○
|
1000
|
950
|
Special material for 600 MW power plants.
|
|
SUH446
(AISl446)
|
-
|
○
|
1000
|
1100
|
27Cr steel. Endurable against reducing flame and sulfuric gas
|
|
TITANIUM
|
○
|
○
|
250
|
500
|
Corrosion resistance at low temperature is fairly good, but oxidized and fragile at high temperature
|
|
MONEL400
|
-
|
○
|
500
|
1000
|
Ni-Cu alloy, having good resistance especially against sea water and also various types of acid or alkaline solution
|
|
KANTHAL AF
|
○
|
-
|
1100
|
1300
|
Having mechanical strength at high temperature. Not suitable for welding of metallic fittings
|
|
C4
|
○
|
○
|
300
|
550
|
Excellent corrosive resistance for alkali and acid industries
|
Thermowell for Temperature Sensor
Types and Characteristics of Surface Treatments and for Metallic Protection
Tubes and Thermowells including Covers
Type
|
Max Temp Limit（℃）
|
Features
|
|
Normal
|
Max
|
|
PFA Coating
|
200
|
250
|
Having good corrosion resistance against chemicals. Corrosion resistance not changed even if temperature changes. Mechanical strength greater compared to other resin coating.
|
|
Glass Lining
|
250
|
350
|
STPG370 used as the base material. Acid resistance is good but alkali resistance inferior.
|
|
Ceramic Coating
|
1200
|
1300
|
Having good acid resistance. The coating material, if oxidized chrome contained, has good alkali resistance. Abrasion resistance is also good.
|
|
Hard Facing
|
600
|
750
|
Having good resistance against corrosion and abrasion, and also against acid and alkali.
|
|
Tantalum Cover
|
350
|
500
|
Having resistance against all acids, but getting fragile in air at high temperature.
|
|

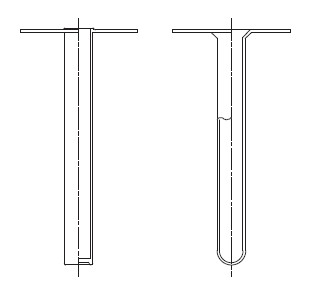

FEP Cover
|
180
|
200
|
4-6 fluorocarbon resin product, having resistance against most of chemicals. Other PFA resin product for higher temperature also available.
|
.jpg) FEP Cover
|
